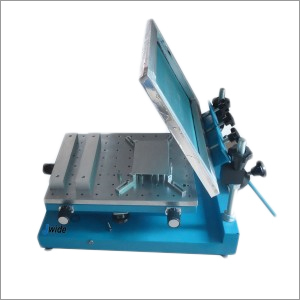

Stencil Printer

Stencil Printer
Stencil Printer
Product Code : JW-3040
Brand Name : J-WIDE
Product Description

SMT Manual Stencil Printer

The SMT Manual Stencil Printer is suitable for small and medium volume production. It works for screen- or stencil printing of glue solder paste or another substances. This product is used for fine pitch components and uses minimum pitch of pads. Stencil Printers range from manual to semi-automatic to automatic. The Stencils Printers are designed for low to medium volume assembly. This Gadget is durable, easy-to-use systems provide repeatable and reliable results. A unique "Foil-Frame" adapter kit is available for all models to mount frameless stencils and reduces the cost of the stencil.

  • Affordable price
  • Automatic Adjustable power
  • Flexible to use
  • Automated production

Technical Specification:

Brand

Jwide

Model

JW-3040

Outer dimension

560*390*350mm

Platform size

300*400mm

PCB Size

250*400mm

Template size

370*470mm

Printing speed

manual control

PCB Thickness

0~100mm

PCB Tuning range

Front/side +10mm

Platform height

180mm

Repeatability

0.01mm

Positioning mode

outside/reference hole

Weight

Approx.40Kg

Product Features:

  • Can choose platform the same with printing machine,allocation of single/double sided board is very flexible to make precision of printing.
  • Rotate the printing screen about 45 degrees and repeatability precision is very high and can rival with machine.
  • Stencil movement,printing platform which X,Y axis precision fine-tuning the handle are applied to school edition way,convenient and shortcut.
  • Machine area made by thickening models,with superior materials,durable service and seed firm.
  • Steel mesh support apply to screw mandrel
  • Can make to order
