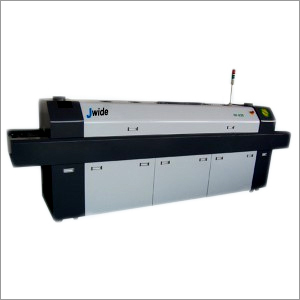

Reflow Oven Without Computer

Reflow Oven Without Computer
Reflow Oven Without Computer
Product Code : JW-660
Brand Name : J-WIDE
Product Description
To meet our client's demands we offer them with a high quality reflow oven without computer. Made by a group of extremely skilled engineers with the latest technology, this reflow oven is reliable and efficient. It offers the user a smooth functioning along with accurate results. This is easy to operate and offers a wide variety of functions. Easily available, the reflow oven without computer is a cost effective product. They are offered in various specifications to fulfil our client's requirements.
  • Accurate dimensions
  • Robust construction
  • Smooth performance
  • Technologically advance

Technical Specifications

Brand

Jwide

Model

Jwide-660

Heating
system

Heating zone

6 zones

Heating zone length

2140mm

Cooling zone

by cooling fan

Max. PCB width

350mm

Rail adjustment range

50~300mm

Conveyor direction

L to R or R to L

Fixation type of rail

front or rear

Conveyor height

900+/- 20mm

Conveyor type

mesh+chain

Conveyor speed

0~2000mm/min

Temperature
control
system

Power

3 phrase 5 wires
(380V 60/60 HZ)

Start power consumption

28KW

Operation power consumption

6KW

Heat up time

approx. 20 minutes

Range of temperature control

Room temp:~350℃

Temperature control mode

PID&SSR

Temperature control accuracy

±1℃

Temperature distribution error

±2℃

Abnormal alarm

alarms when temperature out of tolerance

Machine size
& weight

Approx. weight

1200kg

Dimension

3500 X 700 X 1250mm
