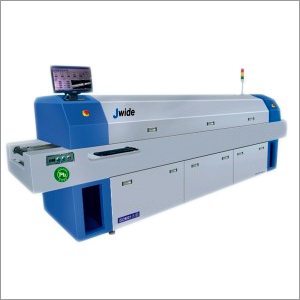

Reflow Oven Machine

Reflow Oven Machine
Reflow Oven Machine
Product Code : JW-8800
Brand Name : J-WIDE
Product Description

A reflow oven is a machine used primarily for reflow soldering of surface mount electronic components to printed circuit boards. Designed and produced with high quality material and advanced technology, the product is reliable and offers a smooth functioning. The reflow oven machine is easy to operate and provides accurate and fast results. Easily available, it comes with an affordable pricing. Economical rework solution from single runs to on-demand small batch production is one of the few features of the product.

  • High performance
  • Long life
  • Robust construction
  • Easy installation

Technical Specifications:

Brand

Jwide

Model

JW-8800

Heating
system

Heating zone

8 zones

Heating zone length

2800mm

Cooling zone

2 zones

Max. PCB width

400mm

Rail adjustment range

50~300mm

Conveyor direction

L to R or R to L

Fixation type of rail

front or rear

Conveyor height

900+/- 20mm

Conveyor type

chain + mesh

Conveyor speed

0~2000mm/min

Temperature
control
system

Power

3 phrase 5 wires
(380V 60/60 HZ)

Start power consumption

20~40 KW adjustable

Operation power consumption

10KW

Heat up time

approx. 20 minutes

Range of temperature control

Room temp:~350℃

Temperature control mode

PID&SSR

Temperature control accuracy

±1℃

Temperature distribution error

±2℃

Abnormal alarm

alarms when temperature out of tolerance

Machine size
& weight

Approx. weight

1400kg

Dimension

4600*900*1650
