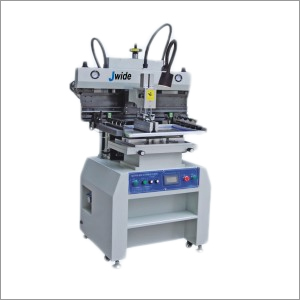

PCB Solder Paste Printer

PCB Solder Paste Printer
PCB Solder Paste Printer
Product Code : JW-818
Brand Name : J-WIDE
Product Description
The PCB Solder Paste Printer is available in different varieties and the basic components and principles of these machines are the same. The basic equipment used during the process is a conveyor and it moves the PCB through the different zones, a pan of solder used in the soldering process, a pump that produces the actual wave, the sprayer for the flux and the preheating pad. The solder has the chemical makeup of 50% tin, 49.5% lead, and 0.5% antimony in general.
  • Fully automatic stencil load
  • Fully automatic stencil eject
  • Automatic rail width adjust
  • On-stencil solder bead inspection

Technical Specification:


Brand

Jwide

Model

JW-818M

Outer Dimension

1005*670*1550mm

Platform size

320*600mm

PCB Size

250*550mm

Template size

550*835mm

Printing speed

0~8000mm/min

PCB Thickness

0~100mm

PCB Tuning range

Front/Side +10mm

Power Supply

1PAC220V 50/60HZ

Platform height

850±20mm

Repeatability

±0.01mm

Positioning mode

Outsie/Reference hole

Weight

Approx.290kg

Product Features:

  • Adopt Korean made high precision roller rail and various frequency,adjustable speed motor drive scrapper to ensure
  • printing precision.
  • Scraper can slide back and forth to choose the best printing location.
  • Scraper can rotate 45degrees upward to fix,convenient for cleaning and change.
  • Panasonic PLC  touc.h screen controller to make operation easier.
  • Fixableng printing cycles,available multi printing mode ,easy parameter setting.
  • Three working mode:automatic(machine maintainence),semi-automatic(normal operation)and manual(debugging).
  • Magnetic honeycomb fashion platform to make single/double board allocation easy and flexible.
  • Adjustable scrapper's angle,pressure and stroke;suitable for steel scrapper and rubber scraper
