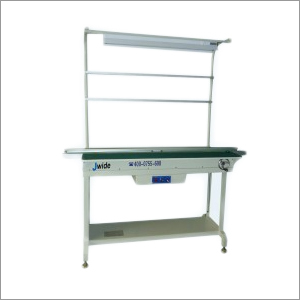

1.5M PCB Conveyor With Light

1.5M PCB Conveyor With Light
1.5M PCB Conveyor With Light
Product Code : JW-808
Brand Name : J-WIDE
Product Description
PCB move interposition during transmitting and it has the function of photo electricity automatic inspection and manual releasing. It has patent tracks and solve thin card guide PCB problem. It improves fluency of connection. The Machines area is made by thickened models or section Aluminium. It is made by superior materials and provides durable service. It is a perfect product with following features:
  • Overhead lighting
  • Highly compatible
  • CE marked
  • Large PCB format

Salient Features:

  • Elaboration M lead screw,hand width-adjusting system to make 2 conveyor tracks move smoothly.
  • Imported circular special belt and patent tracks,can solve thin card guide PCB problem,improve fluency of connection.
  • Standard signal of industry for equipments,SMEMA can connect with others automatically on line.
  • Machine area made by thickened models or section Aluminum,with superior materials durable service and seed firm.
  • Applicable to production line of SMT and AI,facilitate to connection of equipments before and after.
  • When PCB move interposition during transmitting,it has the function of photo electricity automatic inspection and manual releasing.
  • Increasing weight at the bottom to make machine uneasy to be moved,make connection more smoothly.

Technical Specification :

Brand

Jwide

Model

JW-808 PCB Conveyor

Outer Dimension

500x640x710mm

PCB Width

50~350mm

PCB Direction

L to R or R to L

Speed

0~10000mm/min

Motor

1P AC220V 50/60HZ 15W

Power Supply

1P AC220V 50/60HZ

Rail length

up to your request

Control System

PLC

Foot switch

standard

Lighting

Option

SOP Rack

Option

Platform material

ESD Rubber Mat

Communication plug

SMEMA Signal plug for up&down line

Weight

Approx.65Kg
